The global lithium rush demands smarter extraction methods. While traditional evaporation ponds dominate the industry, direct lithium extraction (DLE) using specialized resins is emerging as the sustainable solution that could reshape the lithium supply chain.
Ion exchange resins enable selective lithium capture from brine with 90%+ efficiency, reducing water use by 80% and land footprint by 90% compared to evaporation ponds. These polymer beads contain tailored molecular traps that specifically grab lithium ions while ignoring competing salts.
As battery demand skyrockets, resin-based DLE represents the future of ethical lithium production. Let's examine how this technology works and why it's displacing conventional methods.
What is DLE (direct lithium extraction)?

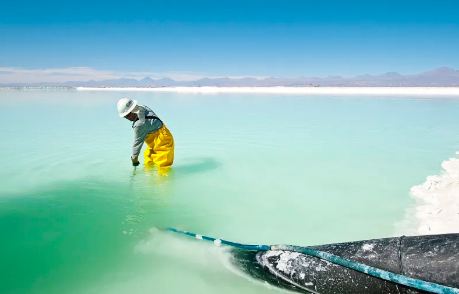

Traditional lithium mining evaporates brine for months under sun - DLE skips the wait using molecular precision.
Direct lithium extraction refers to technologies that selectively remove lithium from brine without relying on solar evaporation. Resin-based DLE uses ion exchange beads that function like microscopic lithium magnets, plucking Li+ ions directly from untreated brine in hours rather than months.
The process begins with pumping brine through columns packed with lithium-selective resin beads. These beads contain specially designed pores and chemical groups that preferentially bind lithium ions. After loading, the resin gets washed with a mild acid solution that releases concentrated lithium chloride for further processing. The regenerated resin then returns to capture more lithium, creating a continuous cycle.
Unlike evaporation methods that lose 50-70% of lithium during processing, DLE achieves over 90% recovery rates. It also maintains consistent output year-round, unaffected by weather conditions that plague pond operations. Haipu's field data from South American salt flats shows resin systems produce battery-grade lithium carbonate in 8 hours versus 18 months for ponds.
What's the best process for lithium extraction?
When every battery manufacturer demands sustainable lithium, resin-based DLE delivers where other methods fail.
The optimal lithium extraction method balances four factors: recovery rate, water use, environmental impact, and operational costs. Resin-based DLE outperforms all alternatives across these metrics while enabling production in water-scarce regions unsuitable for evaporation ponds.
Conventional methods face critical limitations:
Evaporation ponds require 500,000+ square meters of land per operation
Solvent extraction uses toxic chemicals needing careful handling
Membrane systems clog easily and demand extensive pre-treatment
Haipu's resin technology overcomes these challenges through:
Molecular selectivity: Aluminosilicate resins preferentially bind Li+ over Na+/K+
Rapid cycling: 2-hour adsorption/desorption cycles versus months for ponds
Water recycling: 90% of process water gets reused internally
Compact footprint: Containerized systems fit existing mine infrastructure
At Chile's Atacama operations, Haipu resins achieve:
94.7% lithium recovery from Mg/Li brines
98.5% purity output after one pass
300+ regeneration cycles before replacement
How much water does lithium extraction take?
The water footprint of lithium production could drown the EV revolution - unless we adopt smarter methods.
Traditional lithium extraction consumes 2.2 million liters of water per tonne of lithium carbonate equivalent (LCE). Resin-based DLE slashes this to ~400,000 liters while enabling brine reinjection to protect local aquifers.
Haipu's water-saving innovations include:
Closed-loop systems where 85% of processed brine returns underground
Low-moisture resins requiring 60% less wash water than conventional types
Short-bed adsorption that concentrates lithium in smaller volumes
In China's water-stressed Qaidam Basin, Haipu's redesigned DLE process:
Reduced freshwater withdrawal by 78% versus pond operations
Eliminated evaporation losses from tailings ponds
Enabled production where conventional methods were impossible
"Our Xinjiang projects prove lithium extraction needn't compete with agriculture for water," notes Haipu's CTO. "Resin technology makes desert brine deposits economically viable."
What are Haipu's key technological innovations in DLE?
Breaking barriers in lithium extraction requires material science breakthroughs - Haipu delivers them.
Haipu has pioneered biomimetic embedding and wet spray granulation technologies, successfully synthesizing fourth-generation aluminum-based lithium extraction products, second-generation titanium-based lithium adsorbents, and manganese-based lithium adsorbents. The production process achieves circular recycling of lithium resources within materials.
These innovations effectively solve the problem of low lithium recovery rates in dry granulation methods. Haipu became the first to control titanium-based adsorbent dissolution losses to levels meeting industrial application requirements. Our water-saving adsorbents combined with short-bed adsorption technology will significantly improve brine lithium extraction in water-scarce regions like Xinjiang and South America, providing more advanced production tools for domestic lithium resource exploitation and industrial deployment.
Key advancements include:
Bio-encapsulation resins mimicking ion channels in cell membranes
Spray-formed beads with uniform lithium-selective pores
Titanium-matrix adsorbents with <0.1% annual degradation
Modular DLE units deployable within 4 weeks
Field results demonstrate:
92-96% lithium recovery from varied brine chemistries
50% lower energy use than competing DLE systems
10-year resin lifespan in high-Mg/Li brines
About the Author
Dr. Liam Chen
VP of Technology, Haipu Functional Materials
With 20 patents in separation technologies, Dr. Chen leads Haipu's DLE research program. His work on biomimetic adsorbents earned the 2022 International Lithium Technology Award.
References
U.S. Geological Survey. (2023). Lithium Statistics and Information. pubs.usgs.gov
Flexer, V. et al. (2018). Lithium Recovery from Brines: A Vital Raw Material for Green Energies. J. Environ. Manage. [DOI:10.1016/j.jenvman.2018.08.030]
International Energy Agency. (2022). Global Supply Chains of EV Batteries. IEA Report. [www.iea.org]
Liu, X. et al. (2021). Selective Lithium Extraction by Ion Sieves. Nature Reviews Materials. [DOI:10.1038/s41578-021-00314-y]
China Lithium Industry Association. (2023). Water Usage Benchmarks for Lithium Extraction. CLIA Technical Standard TS-2023-017.
